Steel 10 Ton Porta Power Hydraulic Jack Kit For Body Frame Repair

Product Categories

Xianxian Zhongtu Hardware Tools Co.,LTD

Contact Now

Steel 10 Ton Porta Power Hydraulic Jack Kit For Body Frame Repair

Ask Lasest Price
Brand Name :	zhongtuo
Model Number :	zt-194
Certification :
Price :	negotiate
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30000pcs/month
Delivery Time :	10-15day

Add to Cart

Product Details
Company Profile

Steel 10 Ton Porta Power Hydraulic Jack Kit For Body Frame Repair

10Ton 10t Hydraulic Body Frame Repair Jack, Porta Power Jack

No overloading
Can only be used above a hard support surface
Can only be used as a support tool
Cannot work under objects that are only lifted by a jack
Failure to observe the above precautions may cause personal injury and property damage

Name	10tons Car Body Jack Kit
weight	10T
packing number	1pcs
cylinder length	340
minimum height of oil cylinder	342
maximum height of oil cylinder	477
trip	130
cylinder outer diameter	56
cylinder inner diameter	45
extension rod	100 200 300 500
mouth opening	60mm
nozzle pressure	0.5T
N.W	28kg
G.W	29.5kg
packing number	730420180
wall thickness of extension tube	4.5mm
outer diameter of extension rod	41
inner diameter of extension rod	33

Product Description

This is a heavy duty hydraulic jack kit include 16 pieces for auto body repair. Constructed with steel & cast iron, adopt 10 tons ram, this kit can do great job on lifting, pushing , pulling, bending, straightening & spreading tasks. Portable to carry it in your car or put it on the garage for use at any time.

[Product Details]- Load Capacity: 10 Tons(22046LB); Lift Type: Hydraulic; Height Adjustable Range: 13cm(5.1"); Oil Capacity: 400g; Hose length:2M; Professional hydraulic jack repair kit, mainly used for a variety of autobody repair, frame repair and construction jobs.
[Complete Repair]- This product contains 16pcs: pump, hose, 10 ton ram, spreader ram, flat base, wedge head, 90°V-base, serrated saddle, extension tubes etc. Almost everything needed in repair can be found in this kit.
[Practical Function]- The hydraulic jack kit is safe & reliable to use, better than traditional bulky tools. Meet your needs for lifting, pushing, pulling, bending, straightening & spreading tasks in auto body & frame repair.
[Heavy Load Capacity]- 10 tons ram, hold up to 22046LB car weight. Little tools with power strength. Made of high-strength carbon steel, cast iron, which ensures durability and stability. Elaborate welding craft, smooth surface, well sealing quality and no oil leakage worry.
[Diverse Use]- Support height lifting ranges: 13-18". Perfect for most auto body repair jobs, pop dents out of sheet metal doors and panels in even the smallest, tightest areas etc. With a storage case for portable carry.

Technical Data

Material: Carbon Steel + Cast Iron
Load Capacity: 10 Ton / 22046LB
Max. Lifting Height: 13” / 33cm
Min. Lifting Height: 18” / 46cm
Jack Power Type: Hydraulic
Hose Length: 2M / 78.7"
Oil: No.10 working oil
Oil Be Filled: 400g
Weight: 27kg / 59.5LB

Package

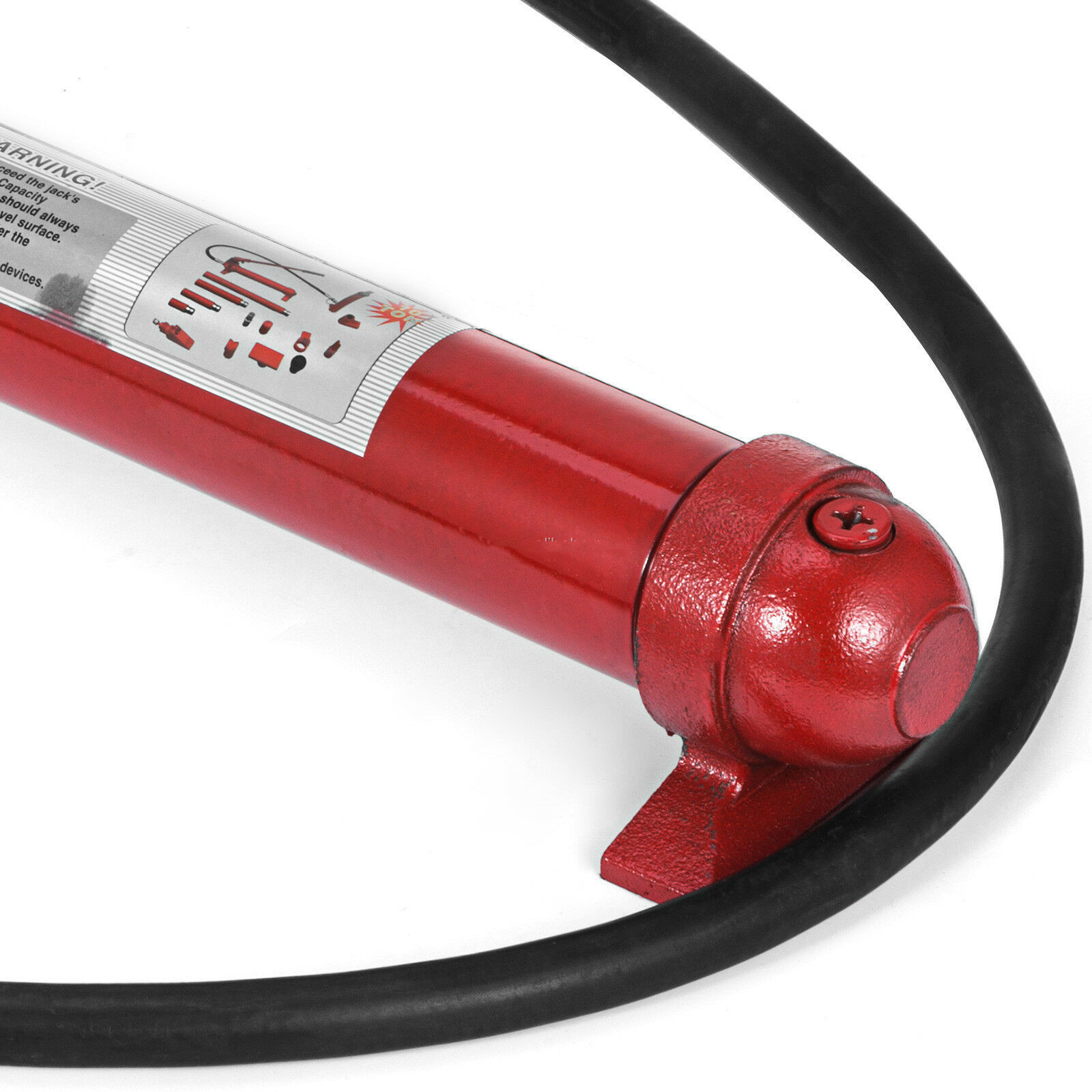

1 x Hydraulic Hand Pump

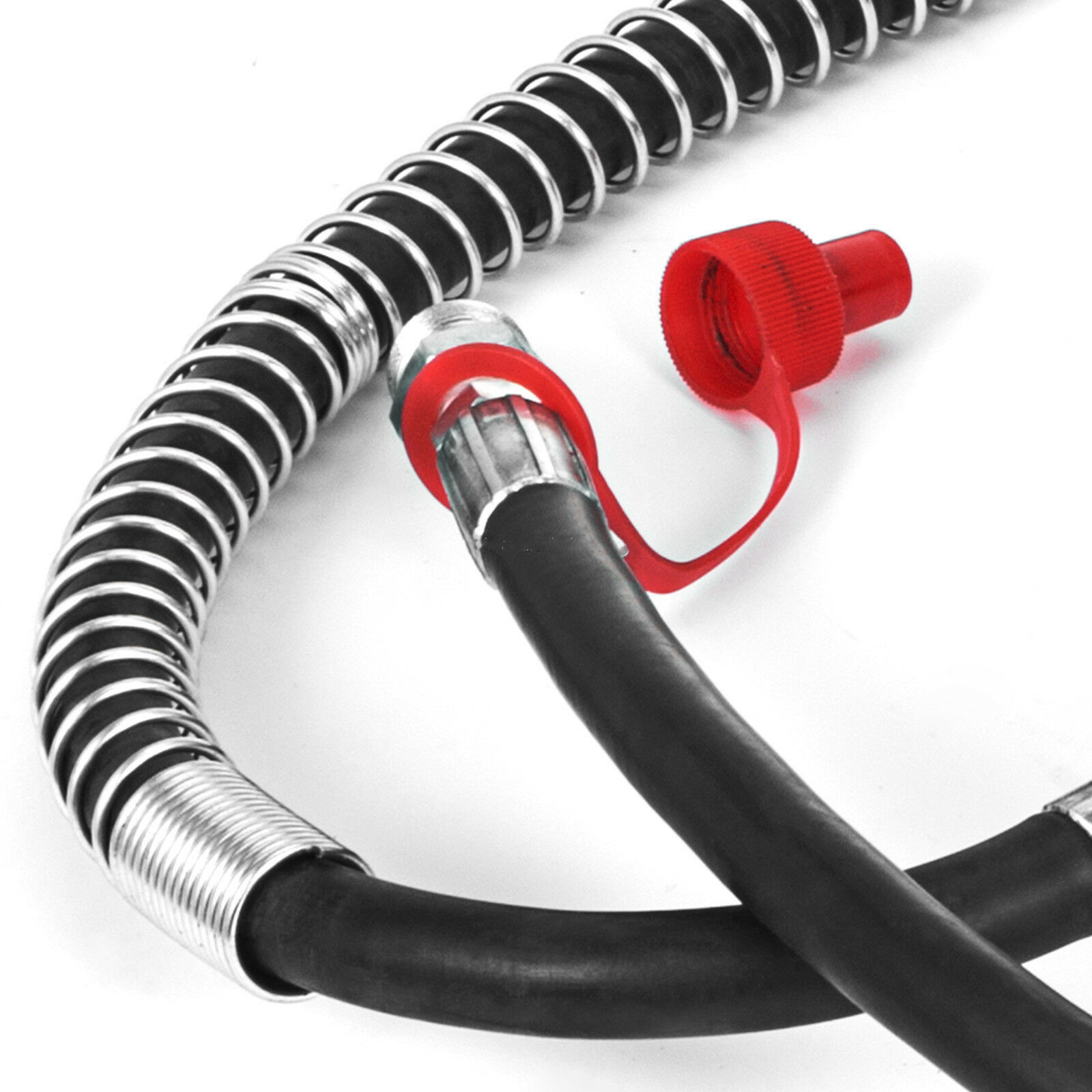

1 x Jack Hose
1 x 10-Ton Ram
1 x Spreader Ram
3 x Extension Tubes
1 x Male Connector
1 x Flat Base
1 x 90°V Base
1 x Wedge Head
1 x Spreader Plunger Toe
1 x Spreader Ram Toe
1 x Flex Head
1 x Serrated Saddle

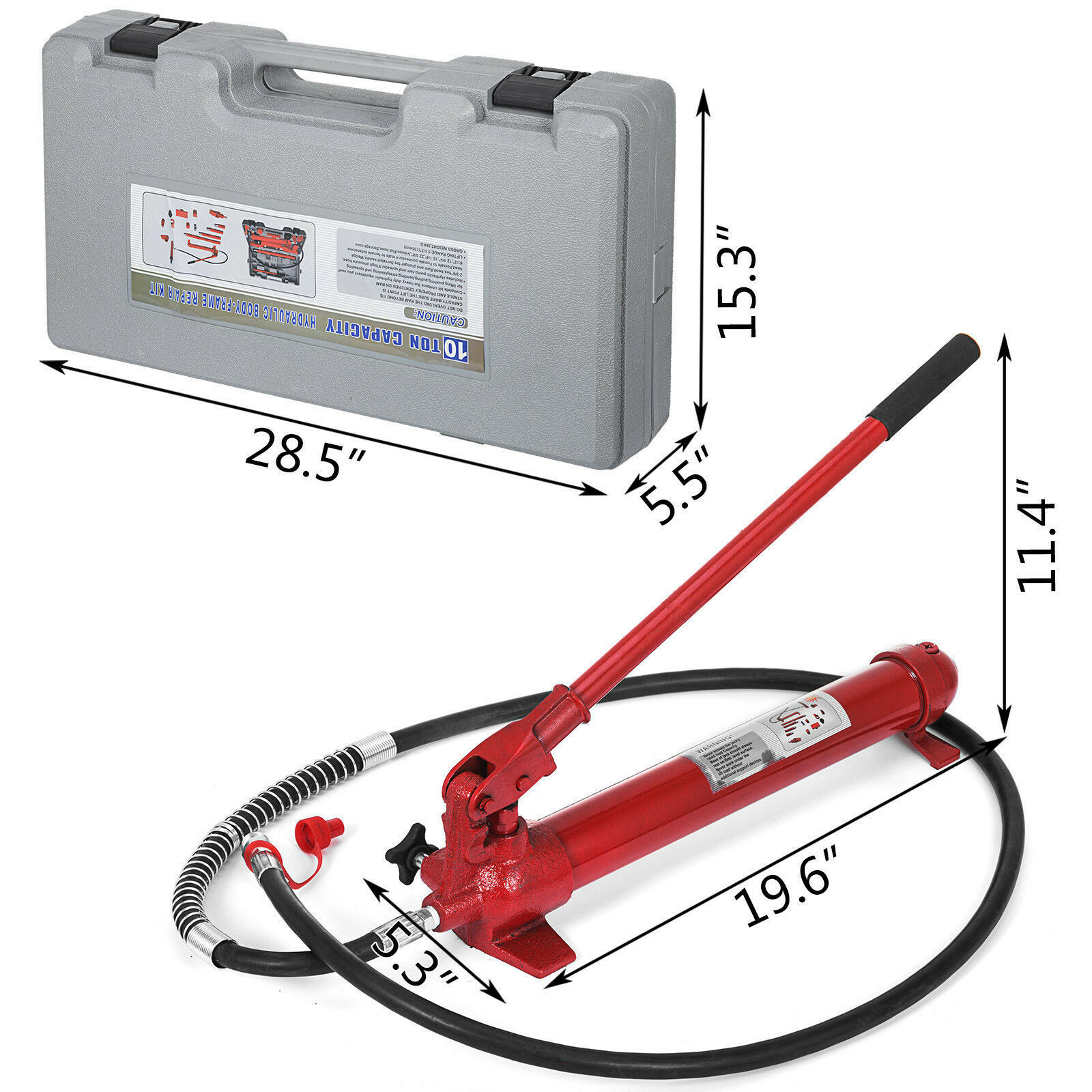

1 x Carry case
1 x User Manual

Product Images

What do you do?

Our products mainly include electric oil, gear oil pump series, spanner, tow rope, high pressure gas cylinder, high and low position conveyor, pneumatic oil injector injector.

Do we accept customization?

Yes, we can accept customization.

Can you help us to do some change about your product?

Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.

Can I get a sample?

Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.You need to pay the express fee.

Are you a factory or trading company?

xianxian zhongtuo hardware tools co.,LTD is specialized in the production and development of automobile repair tools,equipment and sales as one of professional manufacturers.
